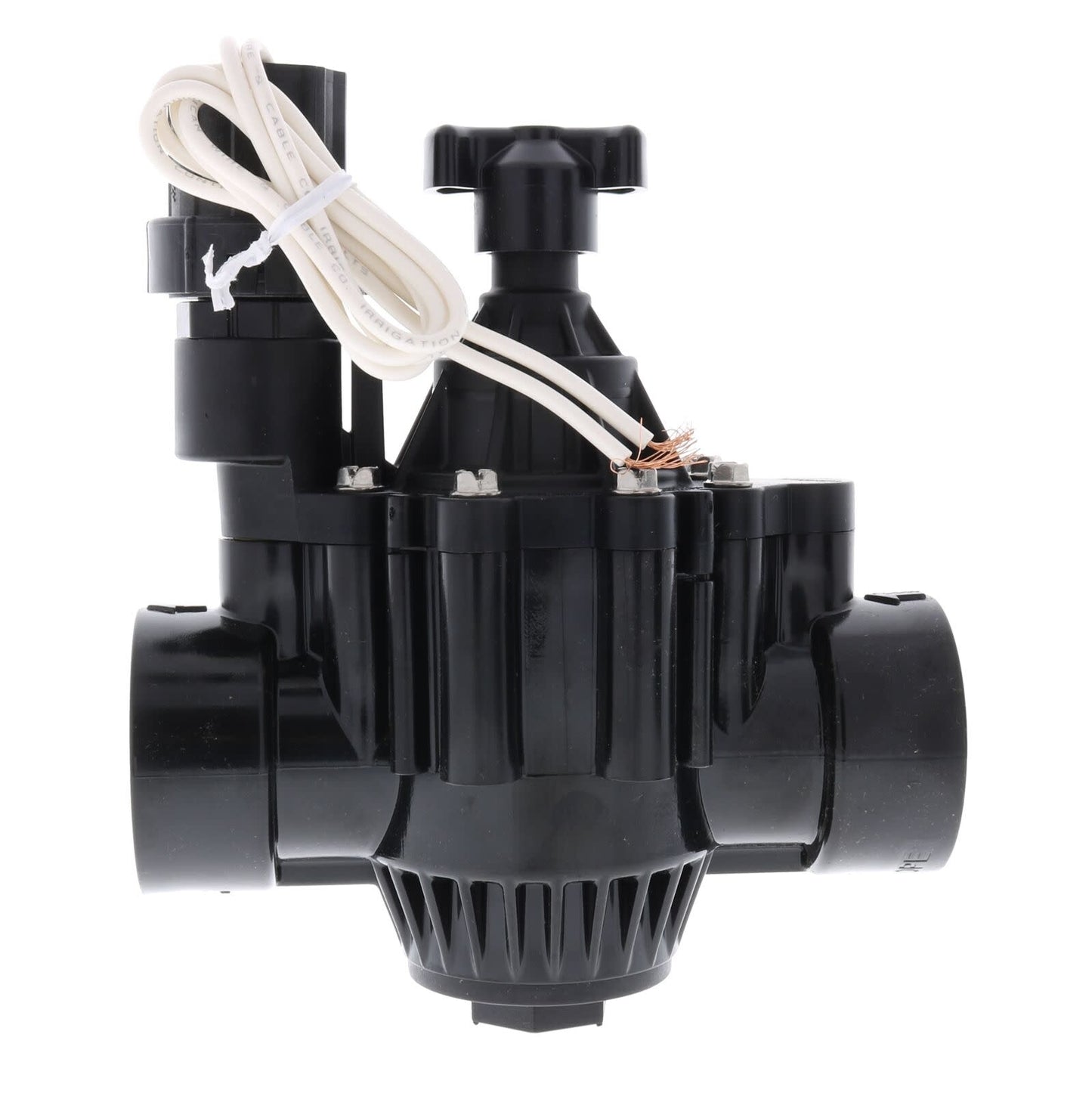

Rainbird PGA Inline / Angle Valve with Flow Control 1-1/2 in. FPT | 150-PGA

• 1½" Rain Bird 150-PGA Valve
• With Flow Control
• 1½" Female Threaded Inlet/ Outlet

Features & Benefits

Built for high-end residential and light commercial applications, Rain Bird PGA series valves are the toughest, most reliable valves in their class. These long-lasting, easy-to-service valves are proven to perform at the highest level, even under harsh temperatures and intense pressure. For maximum peace of mind, PGA series valves also offer a best-in-class, three-year trade warranty. Because you care about your reputation and so do we.

• Water-tight seal between the body and bonnet for maximum confidence, even in the most extreme conditions
• Robust construction and electrical design for quiet performance you can count on
• Filtered pilot flow to resist debris and clogging
• Slow closing to prevent water hammer and subsequent system damage
• Normally closed, forward flow design accepts latching solenoid for use with Rain Bird battery-operated controllers
• Multi-drive screws (Phillips, flathead, hexagonal) for easy maintenance*
• Manual internal bleed operates the valve without allowing water into the valve box. This allows the pressure regulator to be adjusted without turning the valve on at the controller
• One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service
• Three-year trade warranty
• Accommodates optional, field-installed PRS-D pressure regulating dial to ensure optimum sprinkler performance
• Accepts latching solenoid for use with Rain Bird battery-operated controllers
• Optional purple flow control handle for non-potable water applications PGA-NP-HAN1 (1" and 1½"); PGA-NP-HAN2 (2")

Product Details

• Pressure: 15 to 150 psi (1.0 to 10.4 bar)
• Flow without PRS-D option: 2 to 150 GPM (0,5 to 34 m3/h; 0,13 to 9,44 l/s)
• Flow with PRS-D option: 5 to 150 GPM (1 to 34 m3/h; 0,32 to 9,44 l/s)
• Temperature: Up to 110°F (43°C)
• 24 VAC 50/60 Hz (cycles per second) solenoid
• Inrush current: 0.41A (9.9VA)
• Holding current: 0.14A (3.43VA)
• Solenoid Coil resistance: 30-39 Ohms, nominal
