Rain Bird ESP-TM2 12 Station Controller WiFi Ready

Rain Bird ESP-TM2 12 Station Controller WiFi Ready

Regular price $225.00 USD
Regular price Sale price $225.00 USD
Sale Sold out

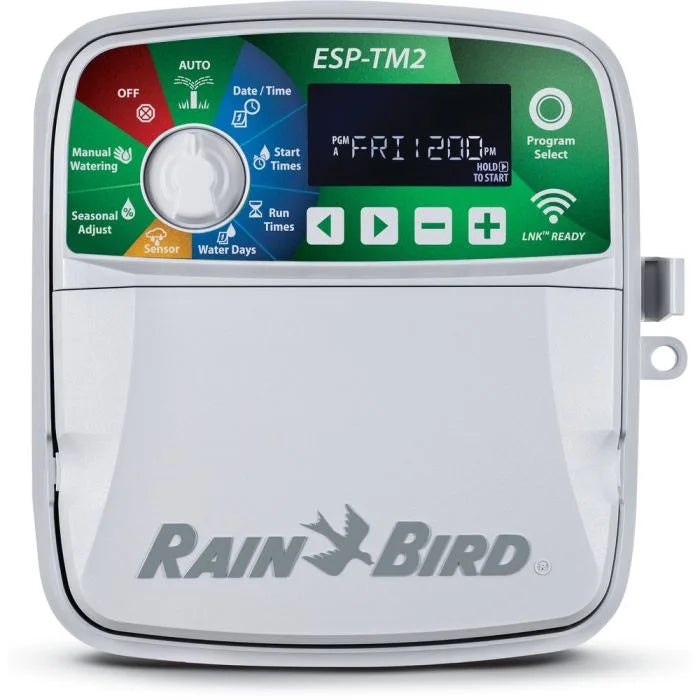

Rain Bird ESP-TM2 12 Station WiFi Ready Indoor/Outdoor Controller

  • Zones: 12
  • Application: Residential
  • Sensor Compatible: Rain, Freeze

Features & Benefits

The ESP-TM2 irrigation controller is the perfect option for basic residential solutions. Building upon Rain Bird's legacy of The Intelligent Use of Water®, this controller offers simple water saving features that you will actually use.

With the flexibility of 3 programs and 4 start times available per program, you can tailor your watering schedule to your landscape's needs.

The ESP-TM2 provides the Extra Simple Programming interface you are familiar with in a controller that is built to last!

Quick to Install

  • Available in 4, 6, 8, and 12 station models
  • Suitable for indoor or outdoor installations
  • Factory installed 6 ft. outdoor rated power cord for your convenience

Simple to Program

  • Quickly program a schedule in just 3 steps
  • 3 available programs (A, B, C) with up to 4 start times for each program
  • Simple one-touch manual watering
  • NEW large back-lit LCD display for improved visibility in low-light and direct sunlight conditions

Advanced Features

  • Contractor Default allows you to easily save and restore your custom schedule
  • Delay Watering up to 14 days and automatically resume watering after the set delay has elapsed
  • Bypass Rain Sensor for any station gives you the ability to customize which stations react to a rain sensor
  • Set Permanent Days Off per program to ensure watering never occurs on days when maintenance crews are on site (for Odd/Even/ Cyclic schedules)
  • Seasonal Adjust by program allows you to easily reduce or increase watering by program
  • Manual Watering option for all stations, a single station or an individual program
  • Seasonal Adjust applied to all programs or an individual program
  • Delay Watering up to 14 days (applies only to stations set to obey Rain sensor)
  • Permanent Days Off (for Odd, Even or Cyclic programming)
  • Sensor bypass for all programs or for individual stations
  • Adjustable delay between stations
  • Contractor Default Program Save and Restore saved program(s)
  • Master Valve on/off by station
  • Automatic short detect with station specific alarm messages

Product Details

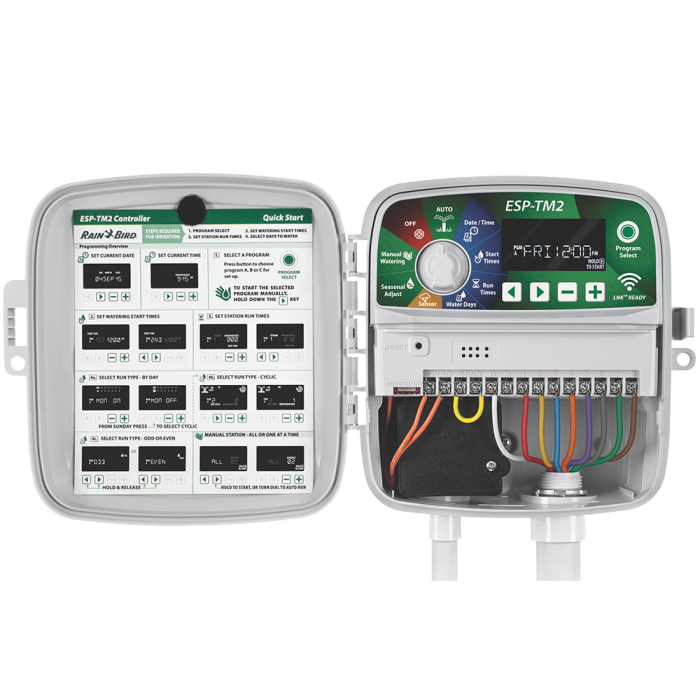

Controller Hardware

  • Plastic wall-mount cabinet with door
  • Mounting screws with anchor shields
  • Factory installed pigtail

Controller Features

  • Familiar, easy to navigate user interface
  • Rain sensor input with bypass capability
  • Master valve/pump start circuit
  • Nonvolatile (100 year) storage memory
  • Electronic diagnostic circuit breaker
  • Remote accessory port for Rain Bird approved accessory devices

Scheduling Features

  • Program based scheduling with 3 individual programs and 4 independent start times per program for 12 total start times
  • Watering schedule options: Custom Days of the week, ODD or EVEN calendar days, or Cyclic (every 1 - 30 days)

Operating Specifications

  • Station timing: 1 minute to 6 hours
  • Seasonal Adjust: 5% to 200%
  • Max operating temperature: 149°F (65°C)

Electrical Specifications

  • Input required: 120VAC (±10%) @ 60Hz
  • Output: 1A at 24VAC
  • Master Valve/Pump Start Relay
  • External battery back-up not required. Nonvolatile memory permanently saves the current programming and a 10 year life lithium battery maintains the controllers time and date during power outages.

Certifications

  • UL, cUL, FCC Part 15b, IP24

Dimensions

  • Width: 7.92 in. (20,1 cm)
  • Height: 7.86 in. (20,0 cm)
  • Depth: 3.51 in. (9,0 cm)
