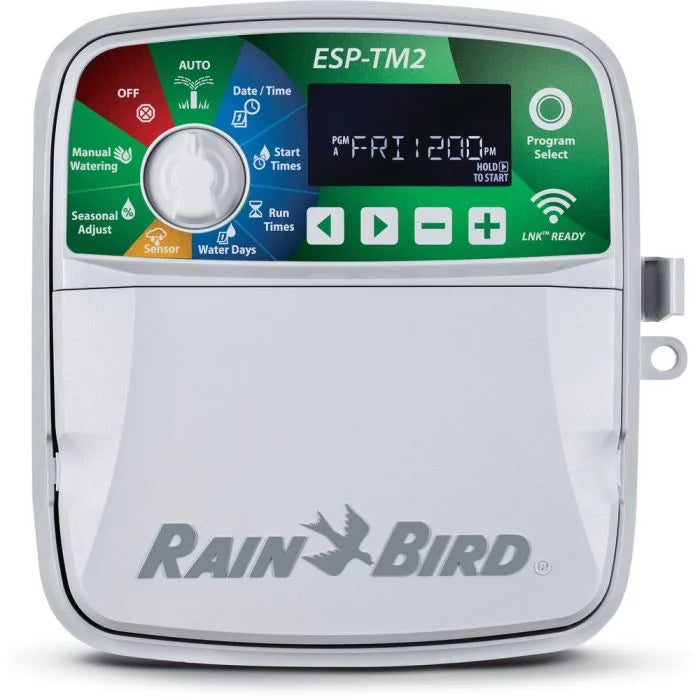

Rain Bird ESP-TM2 8 Station WiFi Ready Controller | TM2-8

• Zones: 8
• Application: Residential
• Sensor Compatible: Rain, Freeze

Features & Benefits

The ESP-TM2 irrigation controller is the perfect option for basic residential solutions. Building upon Rain Bird's legacy of The Intelligent Use of Water®, this controller offers simple water saving features that you will actually use.

With the flexibility of 3 programs and 4 start times available per program, you can tailor your watering schedule to your landscape's needs.

The ESP-TM2 provides the Extra Simple Programming interface you are familiar with in a controller that is built to last!

Quick to Install

• Available in 4, 6, 8, and 12 station models
• Suitable for indoor or outdoor installations
• Factory installed 6 ft. outdoor rated power cord for your convenience

Simple to Program

• Quickly program a schedule in just 3 steps
• 3 available programs (A, B, C) with up to 4 start times for each program
• Simple one-touch manual watering
• NEW large back-lit LCD display for improved visibility in low-light and direct sunlight conditions

Advanced Features

• Contractor Default allows you to easily save and restore your custom schedule
• Delay Watering up to 14 days and automatically resume watering after the set delay has elapsed
• Bypass Rain Sensor for any station gives you the ability to customize which stations react to a rain sensor
• Set Permanent Days Off per program to ensure watering never occurs on days when maintenance crews are on site (for Odd/Even/ Cyclic schedules)
• Seasonal Adjust by program allows you to easily reduce or increase watering by program
• Manual Watering option for all stations, a single station or an individual program
• Seasonal Adjust applied to all programs or an individual program
• Delay Watering up to 14 days (applies only to stations set to obey Rain sensor)
• Permanent Days Off (for Odd, Even or Cyclic programming)
• Sensor bypass for all programs or for individual stations
• Adjustable delay between stations
• Contractor Default Program Save and Restore saved program(s)
• Master Valve on/off by station
• Automatic short detect with station specific alarm messages

Product Details

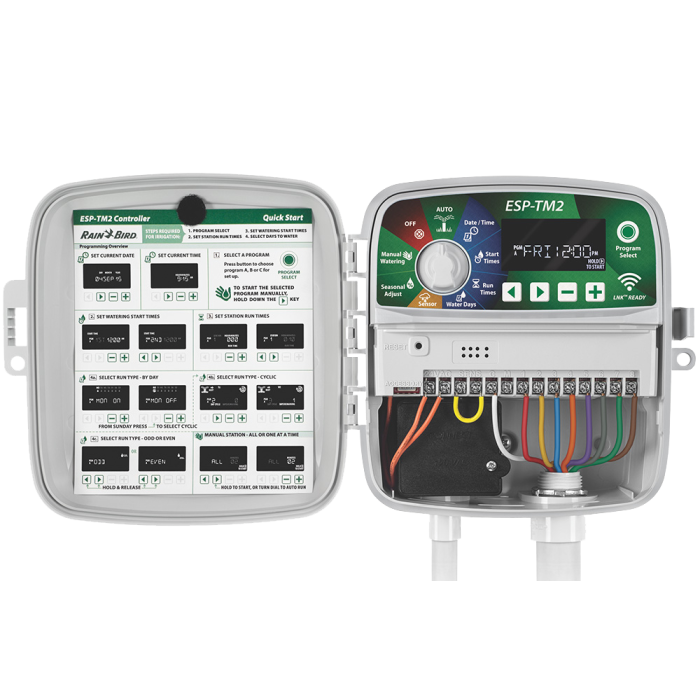

Controller Hardware

• Plastic wall-mount cabinet with door
• Mounting screws with anchor shields
• Factory installed pigtail

Controller Features

• Familiar, easy to navigate user interface
• Rain sensor input with bypass capability
• Master valve/pump start circuit
• Nonvolatile (100 year) storage memory
• Electronic diagnostic circuit breaker
• Remote accessory port for Rain Bird approved accessory devices

Scheduling Features

• Program based scheduling with 3 individual programs and 4 independent start times per program for 12 total start times
• Watering schedule options: Custom Days of the week, ODD or EVEN calendar days, or Cyclic (every 1 - 30 days)

Operating Specifications

• Station timing: 1 minute to 6 hours
• Seasonal Adjust: 5% to 200%
• Max operating temperature: 149°F (65°C)

Electrical Specifications

• Input required: 120VAC (±10%) @ 60Hz
• Output: 1A at 24VAC
• Master Valve/Pump Start Relay
• External battery back-up not required. Nonvolatile memory permanently saves the current programming and a 10 year life lithium battery maintains the controllers time and date during power outages.

Certifications

• UL, cUL, FCC Part 15b, IP24

Dimensions

• Width: 7.92 in. (20,1 cm)
• Height: 7.86 in. (20,0 cm)
• Depth: 3.51 in. (9,0 cm)
