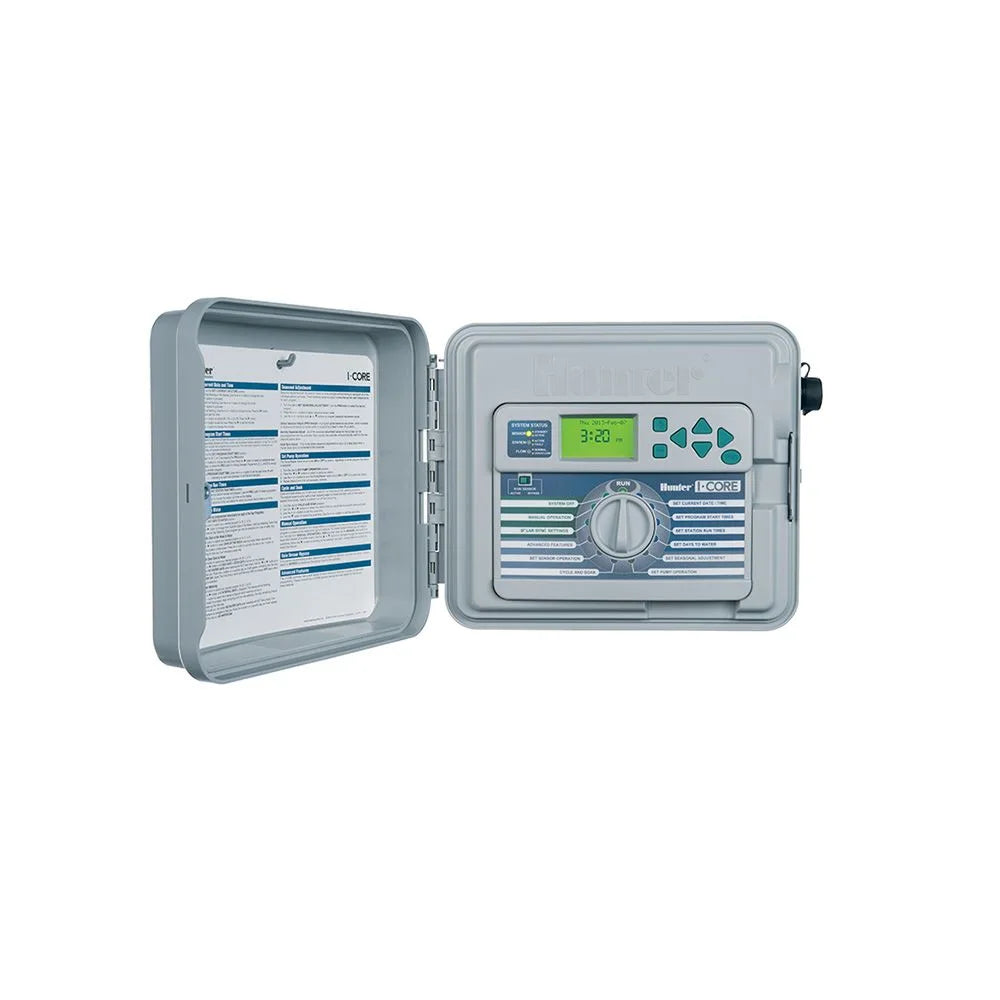

IC600Pl Hunter I-Core Modular Controller 6 Station Indoor/Outdoor Plastic Wall Mount Cabinet

Features & Benefits

The I-Core is Hunters controller for demanding commercial and high-end residential applications. Loaded with innovative features like state of the art flow monitoring, quick system overview access, a factory-installed Smart Port, six language capability, and a bold, back-lit display, the I-Core should be considered for most high-end irrigation projects. A big reason the I-Core is so unique is its sheer versatility. The plastic cabinet version is expandable from 6 to 30 stations, and the metal cabinet model can handle up to 42. Adding a DUAL two-wire module and decoders can expand station capability to 48. Stainless steel and pedestal models are also available, providing a broad range of enclosure choices. With other add-on options like a ROAM or ROAM XL remote and the built-in conservation focused Solar-Sync, I-Cores possibilities are all but limitless. When used with Solar Sync, the I-Core is certified by the EPA as a Water sense-approved controller yet another reason why the I-Core stands alone as the commercial controller of choice.

• Number of stations: 6 to 42 (48 stations with DUAL decoders)
• Type: Modular
• Enclosure: Outdoor, plastic or metal
• Independent programs: 4
• Start times per program: 8 (A, B, C); 16 (D)
• Max. station run time: 12 hrs
• Warranty period: 2 years

Product Details

• Transformer input: 120/230 VAC, 50/60 Hz
• Transformer output (24 VAC): 1.4 A
• No Factory pre-intalled pigtail
• Dual voltage transformer (120/240 VAC)
• Station output (24 VAC): 0.56 A
• Simultaneous program operation: 2
• Pump/Master Valve (24 VAC): 0.28 A
• Sensor inputs: Plastic: 2; Metal: 3
• Operating temperature: 0 F to 140 F
• CE, UL, cUL, C-tick, FCC
• Enclosure rating: Steel wall mounts: IP-56
• Plastic pedestal: IP-24
• Plastic wall-mount: IP-44
• Steel wall mount: IP-56
• Plastic pedestal: IP-24
• Plastic wall mount: IP-44
• Advanced Feature description
