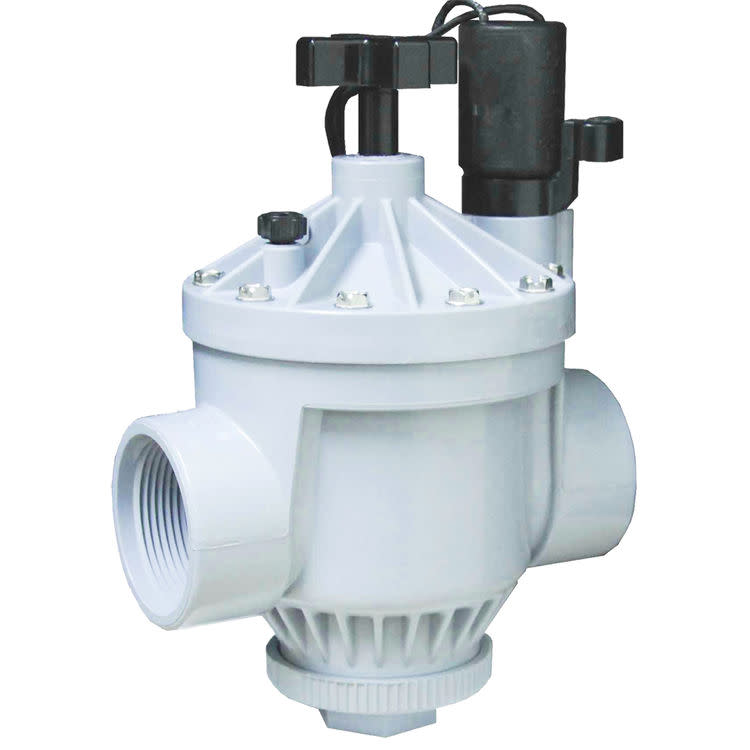

Irritrol 216B 1.5 inch Globe/Angle Valve with Flow Control

Irritrol 216B 1.5 inch Globe/Angle Valve with Flow Control

Precio habitual $75.99 USD
Precio habitual Precio de oferta $75.99 USD
Oferta Agotado

Irritrol 216B 1.5 inch Globe/Angle Valve with Flow Control

  • 1½" Irritrol 216B Valve
  • With Flow Control
  • 1½" Female Threaded Inlet/Outlet

Features & Benefits

The Irritrol 200B Series globe/angle valves have built their popularity on a proven record of reliability and a reputation for offering valuable features at an affordable price. The 200B Series provides manual internal and external bleed, heavy-duty, UV-resistant PVC construction, stainless steel hardware, a double-beaded diaphragm and a captive solenoid plunger.

  • Heavy-duty, corrosion- and UV-resistant PVC construction with stainless steel spring and hardware provides consistent operation
  • Slow-closing design reduces water hammer and resulting stress on the system
  • Rugged, double-beaded SANTOPRENE diaphragm ensures a leak-proof seal
  • Internal and external bleed (flush mode) allows for manual operation
  • Accepts OmniReg modular pressure regulator ensures consistent performance
  • High-strength ribbed bonnet and bottom inlet increases durability
  • Unique three-way stainless steel Bonnet: Screws accept Phillips, flat-blade and hex-driver tools for easy servicing without removal from the system

Added Features

  • Flow control allows precise adjustment and manual shutoff
  • Buna-N valve seat seal
  • Unique threaded inlet plug O-ring seal prevents leaks
  • Encapsulated injection-molded solenoid with a captive hex plunger

Product Details

Operations Specifications

  • Flow range: 5-120 GPM
  • Pressure range: 20-150 psi

Electical Specifications

  • Solenoid: 24 V ac
  • Inrush volt-amp: 24 V ac-9.6 VA
  • Inrush current: .4 amp
  • Holding volt-amp: 24 V ac-4.8 VA
  • Holding current: .2 amp


  • 214B: H: 6 12", W: 2 12", L: 4 12"
  • 216B: H: 7 34", W: 4 14", L: 5 12"
  • 217B: H: 8 34", W: 5 38", L: 6 14"
